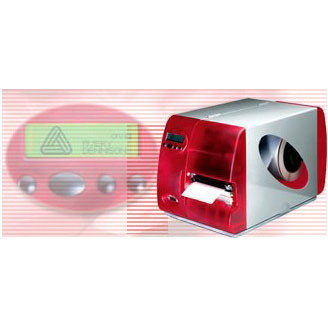

艾利Avery AP4.4条码打印机

艾利Avery AP4.4条码打印机
AP4.4 詳情
打印機規格
打印頭 Flat head
直接傳印/熱轉移 /

解像度 203/300 dpi

打印寬度 Max. 105 mm

打印速度 50-200 mm/sec

打印長度 5-1000 mm

物料

物料類型 Label rolls, material suitable for thermal and thermal transfer printing, plastic foil, PE, PP, PVC, PA

物料厚度 60 - 240 g/m²

寬度 up to 120 mm

長度 10 mm (0,4") bis 1.143 (45")

物料外徑 up to 210 mm

物料內徑 38,1 - 100 mm

炭帶規格

炭帶寬度 25 - 114

炭帶長度 length according to foil type up to 500m

炭帶外徑 max. 80 mm

紙蕊直徑 25 mm

塗層 color side inside (outside possible)

炭帶節省功能

字體

標準 17 fonts including OCR-A and OCR-B, 2 scalable fonts, True Type fonts supported, scaling in X/Y-direction up to faktor 8, rotation 90°, 180°, 270°

條碼

標準 EAN 8 and EAN 13 with add on 2 and 5, UPC-A, UPC-E, Code 39, Code 39 Ratio 3:1 and Ratio 2,5:1, Code ITF, Codabar, UPS Code 128, Code 2/5, Code 2/5 1, Code 2/5 5, Code 2/5 Interleaved Ratio 1:3, Code 2/5 Matrix Ratio 1:2,5; Code 2/5 Matrix Ratio 1:3; Code MSI, Code EAN 128, Postcode (Guide and Identity Code), UPS Code 128, all barcodes scalable in 16 widths and the hight.

二維 Data Matrix Code, Maxi Code, PDF 417, Codablock F

介面

Parallel Centronics


Serial RS 232


RS 422


RS 485


乙太網


USB Slave 1.1


其他

PCMCIA SRAM卡插槽 -

處理器位元 32

機器語言 ZPL

驅動程式 Windows 95/98/2000/NT/XP

配件

Self-initialising light sensor -

機器語言 EASY PLUG


Stacker (Jumbo/Power) option

回卷器 option

切刀 option

剝離器 option

Full size light sensor option

Reflex sensor option

Real time clock option

Print server

Offline kit

Integrated tear-off edge

AP 5.4 完備版配件

回卷器 option

剝離器(需備內置回卷器) option

切刀 option

外置信號輸入 option

尺寸

(長 x 闊 x 高) mm 272 x 260 x 462

重量

公斤 14
